Factory Direct Supplier Unique Design Durable Tested High Security Access Control System Speed Gate Turnstile

Basic Info.

Model NO.	AKT328
Type	Speed Gate
Control Mode	Automatic
Communication Interface	Ttl232
Power Consumption	DC24V
Temperature	-25 to 75ºC
Arm Turning	Bi-Direction
Transport Package	Carton, Wooden Frame
Specification	14001201020mm
Origin	China
HS Code	8608009000
Production Capacity	30000/Month

Product Description

Introduction:

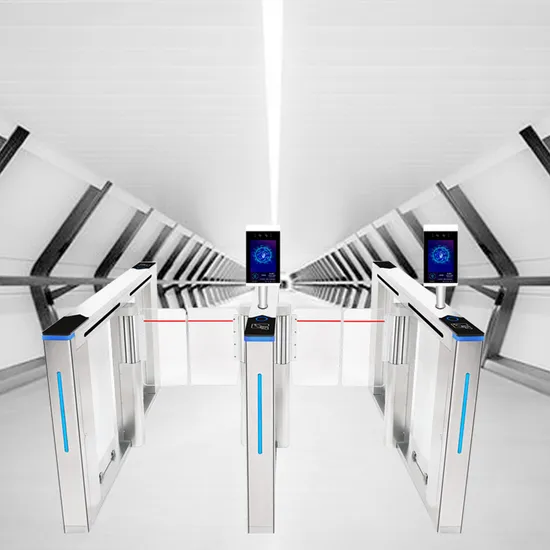

Speed Gate has standard electrical interface which can be connected with ID cards, IC cards, magnetic cards, barcode cards etc. The integration system ensures passing in order and will never allow unauthorized persons to go in or go out.

Parameters:
Main Functions:
1. Problem-self-checking function. 2. Arm Turning: Bi-direction. 3. When power off, arm open automatically and power on again, arm will be held automatically. 4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel. 5. Auto-reposition function: After card read, passenger doesn't pass within regulated time, turnstile will cancel order automatically. And the regulated time can be set by managers. 6. Anti-rush function: if there is no open single, arm will be holding tightly. 7. Stable running with little noise.

Power Supply:	AC220V ± 10V, 50Hz / AC110V ± 10V, 60Hz
Power Consumption:	DC24V 40W
Temperature:	-25 to 75ºC
Humidity:	<95%, without concretion
Passage Width:	<=1000mm
Passing Speed:	40 persons/min (normal open)
Arm Open/Close Time:	1s
Input Interface:	+12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
Communication Interface:	RS485 (Distance: <=1200m), TTL232
Arm Length:	<=500mm
Working Environment:	Indoors or outdoors with shed
Arm Turning:	Bi-direction
