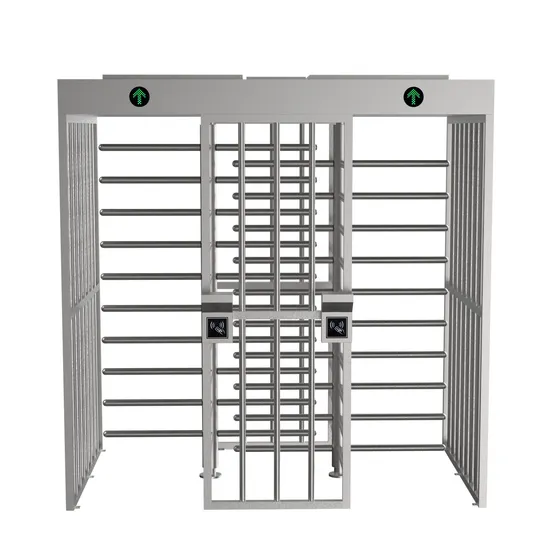

Dual Channel Square Canopy Full Height Turnstile Suitable for Stations Exhibition Halls Metro and Access Control with Qr Code Frid Card Fingerprint
Overview 1) High quality 304 stainless steel, stable and antirust.2) The movement with automatically adjustable hydrauli
Description
- Overview
- Detailed Photos
- Product Features
- Structural and Dimensions
- Product Parameters
- Application scenarios
- Manufacture and Technology
- FAQ
Basic Info.
| Model NO. | NF-TD402D |
| Movement | Single Movement |
| Type | Full Height Turnstiles |
| Control Mode | Automatic |
| Communication Interface | RS485, TCP/IP |
| Power Supply | AC220V, 50/60Hz |
| Driving Principle | DC24V, DC Solenoid Valve Suction |
| Gate Movement | Hydraulic Mute Full-Height Turnstile Movement |
| Operating Temperature | -20ºC to 70ºC |
| Relative Humidity | ≤90% No Freeze |
| Machine Power | Dual-Channel Power ≤ 150W |
| Passage Width | 550-600mm |
| Passing Direction | Single Direction/ Bi-Direction |
| Physical Interfaces | Left Open, Right Open, Fire Interface |
| Passage Rate | Maximum 25 Persons/Minute/Lane |
| Working Environment | Indoor / Outdoor |
| Center Spindle | 304 Stainless Steel, Thickness 2.0mm |
| Transport Package | Carton/Wooden Box |
| Specification | L2150mm*W1400mm*H2200mm |
| Trademark | Customized |
| Origin | Shenzhen, China |
| Production Capacity | 50000pieces/Year |
Product Description
1) High quality 304 stainless steel, stable and antirust.2) The movement with automatically adjustable hydraulic shock absorber, quietly operation and no impact.3) Passage mode: one-way or two-way works.4) Anti-submarine back function.5) Anti-tailgating function, one person can pass at one time.6) Fire safety requirements, arms open automatically.7) Green and red LED indicator display passing status.8) Access time limit: Passing times can be customized.9) Accepts bulk signals, automatic counting, until the last person passes through.10) With leakage protector, safety and easy to install and maintain.11) Support integrated with any type of access control systems.12) Customized services are available.1. What can we do? Our factory is a high-tech enterprise focusing on the field of smart access business, with full business chain capabilities of product design, R&D, production, delivery and sales.2. What products we have? The main products are divided into three categories,Smart parking series: HD License Plate Recognition Integrated Machine, Unattended channel machine, Barrier gate, Scene camera, Control auxiliary machine;Smart personnel access series: Personnel access control, Gate visitor, Attendance patrol, Pedestrian gate;Smart charging series: Motorcycle charging pile, Charging and parking all-in-one machine, AC charging pile, DC charging pile.3. How can we guarantee quality?A pre-production sample before mass production, and full inspection before shipment.4. What is the delivery time? Within 15 workdays.5. What services can we provide?We offer OEM and ODM service to our customer, accepted customized.
NF-TD402D Full Height Turnstile (Dual Channel) - Square CanopyNF-TD402D full-height turnstile is a square structure, easy to disassemble, occupies little space, low transportation cost, simple equipment installation, cost-effective. The overall structural materials are all SUS304 stainless steel and fully welded. The square appearance facilitates on-site wall mounting and is suitable for neighborhoods, construction sites, stations, exhibition halls and other areas. Full height turnstile is highest safety access control solutions. It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID card, QR code, Fingerprint and Biometric reader device).
Detailed Photos
Product Features Structural and Dimensions Product Parameters| Technical Parameters |
| Overall Dimensions | L2150mm*W1400mm*H2200mm (can be customized size) |
| Passage Width | 550-600mm (adjusted according to the size of the gate) |
| Gate Movement | Hydraulic mute full-height turnstile movement (90 degrees) |
| Driving Principle | DC24V, DC Solenoid Valve Suction |
| Passing Direction | Single direction/ Bi-direction |
| Physical Interfaces | Left open, right open, fire interface |
| Passage Rate | Maximum 25 persons/minute/lane |
| Power Supply | AC220V, 50/60HZ |
| Machine Power | Dual-Channel Power ≤ 150W |
| Operating Temperature | -20ºC~70ºC |
| Relative Humidity | ≤90%, No freeze |
| Working Environment | Indoor / Outdoor |
| Center Spindle | 304 stainless steel, thickness 2.0mm |
